Introduction to DDS (Data Distribution Service): Real-Time Data Communication Made Easy!

Hi folks, how would you like to talk about introduction of DDS (Data Distribution Service)? Lets start quickly..

In today’s interconnected world, where real-time data exchange is crucial for various industries and applications, a robust and efficient communication protocol is essential. This is where DDS, or Data Distribution Service, comes into play. In this blog post, we’ll explore what DDS is, how it works, and its key features that make it a preferred choice for real-time data distribution in distributed systems.

What is DDS?

DDS is a communication protocol standard designed to facilitate real-time and scalable data distribution in distributed systems. It provides a middleware layer that enables efficient and reliable data exchange between components such as sensors, devices, and applications, in a loosely coupled manner. DDS abstracts the underlying network infrastructure, allowing publishers and subscribers to communicate without direct dependencies.

DDS Diagram

Key Features

1. Data-Centric Communication: Unlike traditional messaging protocols, DDS focuses on the exchange of data rather than low-level messages. This data-centric approach enables applications to share information in a structured and semantically meaningful way, improving interoperability and reducing integration efforts.
2. Quality of Service (QoS) Policies: DDS provides configurable QoS parameters to meet the specific requirements of applications. These policies include reliability, durability, latency, and bandwidth, allowing developers to fine-tune the communication characteristics based on their application’s needs.
3. Scalability and Fault-Tolerance: DDS is designed to handle large-scale distributed systems with a dynamic network of participants. It supports automatic discovery, dynamic reconfiguration, and fault-tolerant communication, ensuring that the system can adapt to changes and continue operating reliably even in the presence of failures.
4. Real-Time Capabilities: Real-time systems demand timely and predictable data delivery. DDS is optimized for such requirements, offering features like time-based filtering, event handling, and deadline management. These capabilities enable developers to meet strict timing constraints and ensure that critical data is delivered on time.

Interoperability

1. Platform Independence: DDS interoperability ensures that DDS applications can run on different operating systems and hardware platforms. This allows DDS applications to be deployed on diverse platforms and enables them to communicate with each other in a consistent manner.
2. Language Independence: DDS interoperability enables DDS applications developed using different programming languages to interoperate with each other. It provides language bindings for popular programming languages, allowing applications written in different languages to exchange data using the DDS standard.
3. Vendor Independence: DDS interoperability facilitates the integration of DDS components and applications from different vendors. It ensures that DDS implementations from different vendors can interoperate seamlessly, enabling users to choose the best-fit DDS solutions for their specific requirements.
4. Network Interoperability: DDS interoperability enables DDS applications to communicate over heterogeneous networks. It supports various transport protocols and network configurations, allowing DDS applications to exchange data across different network infrastructures.
5. Inter-Domain Communication: DDS interoperability enables communication between DDS domains. A DDS domain represents a logical boundary within which DDS applications interact. Interoperability allows data exchange between different domains, enabling distributed systems to collaborate and share information.

DDS interoperability ensures that DDS-based systems can communicate and collaborate effectively, regardless of the platforms, programming languages, or vendors involved. It promotes integration, flexibility, and scalability in real-time distributed applications.

Quality of Service (QoS)

Quality of Service (QoS) is a fundamental aspect of DDS (Data Distribution Service) that allows fine-grained control over the characteristics and behavior of data communication. QoS defines a set of parameters and policies that govern how data is published, delivered, and received within a DDS system.

The QoS feature in DDS provides a flexible and configurable framework to meet the specific requirements of real-time applications. Here are some key aspects of DDS QoS:

1. Reliability: DDS offers configurable reliability options to ensure the reliable delivery of data. Reliability settings determine whether data should be sent reliably (guaranteed delivery) or best-effort (unreliable). Reliability can be crucial in scenarios where data loss is not acceptable, such as in critical systems or sensitive environments.

2. Durability: DDS supports durable data persistence, allowing historical data to be stored and made available to late-joining subscribers. Durability settings determine how long data should be retained and whether it should be persisted to disk, enabling data recovery and analysis even after system restarts or network disruptions.

3. Scalability: QoS parameters in DDS help manage system scalability by controlling the flow and rate of data transmission. Through settings like throttling and congestion control, DDS can adapt to the available network bandwidth and prevent overwhelming subscribers with a flood of data.

4. Latency: DDS allows fine-tuning of data delivery latency based on application requirements. Users can configure parameters such as deadline, budget, and history to optimize latency, ensuring timely data delivery and real-time responsiveness in time-critical applications.

5. Security: DDS QoS provides mechanisms for secure data communication. It offers encryption, access control, and authentication options to protect sensitive data from unauthorized access or tampering. Security settings can be customized to meet the specific security needs of the application and system.

6. Topic Discovery and Filtering: DDS QoS allows for flexible topic discovery and filtering mechanisms. Publishers and subscribers can express their interest in specific data topics using content-based filtering or other criteria, ensuring efficient and selective data distribution.

These are just a few examples of the QoS capabilities in DDS. The flexibility and configurability of QoS parameters make DDS adaptable to a wide range of application domains and their specific requirements, enabling efficient and reliable data communication in real-time systems.

Architecture

1. Data-Centric Publish/Subscribe Model: At the heart of DDS architecture lies the data-centric publish/subscribe model. This model allows data producers (publishers) to share information with data consumers (subscribers) in a decoupled and asynchronous manner. Publishers publish data on specific topics, and subscribers express their interest in receiving data on those topics. This decoupling enables flexible and dynamic communication patterns in distributed systems.
2. Data Topics and Data Type System: DDS architecture revolves around the concept of data topics and a robust data type system. Data topics represent the subjects or categories of data being published and subscribed to. They define the structure and semantics of the data being exchanged. The data type system provides a standardized mechanism for describing the format and layout of data, ensuring interoperability between different components and platforms.
3. Data Writers and Data Readers: Data writers and data readers are the fundamental components in DDS architecture. Data writers are responsible for publishing data on specific topics, while data readers express their interest in receiving data on those topics. Multiple data writers and readers can be associated with a single data topic, allowing for data replication and distribution across the system.
4. Quality of Service (QoS) Policies: DDS architecture provides extensive support for defining and managing Quality of Service (QoS) policies. QoS policies specify the desired characteristics and behavior of data communication, such as reliability, durability, latency, and bandwidth. By configuring appropriate QoS policies, application developers can ensure that the data distribution meets the specific requirements of their real-time system.
5. DDS Middleware: DDS architecture relies on a middleware layer that provides the necessary infrastructure for data communication. The DDS middleware manages the discovery of data producers and consumers, handles the routing and delivery of data, and enforces QoS policies. It acts as a transparent layer between the application and the underlying network, abstracting the complexity of data distribution.

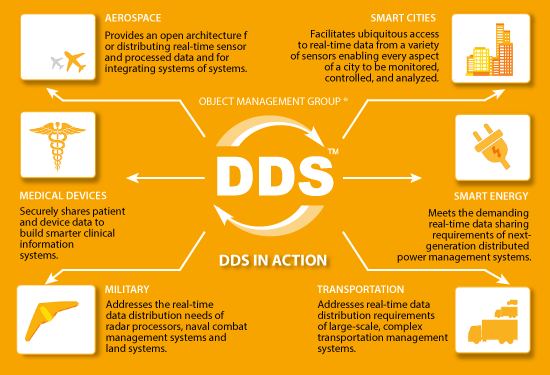

Applications

DDS finds applications in various industries and domains where real-time data sharing is crucial. For example:

• In industrial automation, DDS enables seamless communication between sensors, controllers, and actuators, ensuring real-time control and monitoring of manufacturing processes.
• In healthcare, DDS facilitates the exchange of patient data between medical devices, electronic health records, and healthcare applications, enabling timely and accurate decision-making.
• In aerospace and defense, DDS supports mission-critical systems, including aircraft avionics, satellite communications, and command and control applications, ensuring reliable and efficient data exchange.

Conclusion

DDS (Data Distribution Service) is a powerful communication protocol that simplifies real-time data distribution in distributed systems. With its data-centric approach, configurable QoS policies, scalability, fault-tolerance, and real-time capabilities, DDS provides an efficient and reliable solution for applications requiring timely and scalable data exchange. Whether it’s industrial automation, healthcare, aerospace, or other domains, DDS empowers developers to build distributed systems that meet stringent performance and reliability requirements. Embracing DDS can unlock the full potential of real-time data communication, enabling innovation and driving progress in various industries.

DDS has multiple distributions such as FastDDS, MilDDS, RTI Connext DDS and OpenDDS. I will proceed by using FastDDS in my articles.

https://www.eprosima.com/index.php/products-all/eprosima-fast-dds
https://www.milsoft.com.tr/index.php/portfolio/mildds/
https://www.rti.com/products/dds-standard

Source: DDS Foundation
